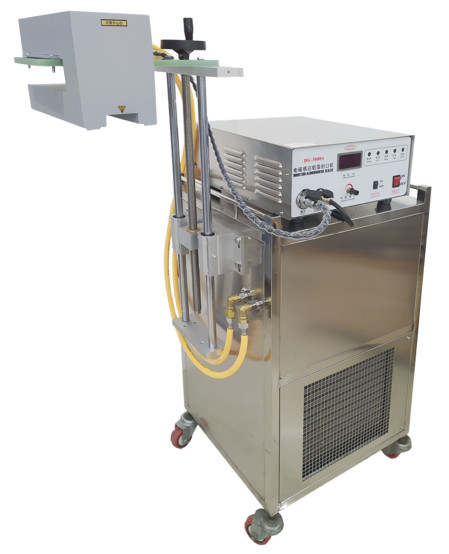

50-200 BPM DG-3000A Induction Sealing Machine 220V 3KW
1. Introduction
It is used for aluminum foil sealing of plastic bottles, glass bottles in food, cosmetics, medicine, grain, oil and chemical industries, especially with the unique function of sealing special-shaped containers. Stainless steel frame, separate machine and sealing head design, convenient maintenance.
2. Technical Parameters
| 1 |
Sealing Speed
|
50-200 bottles/min |
| 2 |
Sealing Range
|
Φ15-Φ55mm/Φ30-Φ70mm/Φ60-Φ140mm (One out of three) |
| 3 |
Voltage/Frequency
|
～220V±10% 50/60Hz |
| 4 |
Maximum Output Power
|
3000Wmax *Power adjustable |
| 5 |
Height Adjust Range
|
760-1180mm |
| 6 |
External Dimension |
Machine: 395×420×185mm (L*W*H)
Water Tank: 520×450×980mm(L*W*H)
Sealing Tunnel: 310mm×130mm×190mm
|
| 7 |
Weight
|
Net Weight: 68Kg |
| 8 |
Cooling Type
|
High Speed Water Cooling |
| 9 |
Input Current
|
Static state≤5A Dynamic≤12A |
| 10 |
Output Waveform
|
Sine WWave50-80KHz |
3. Features
3.1. The machine cover is made of 304 stainless steel, which is reasonably designed and meets the requirements of GMP.
3.2. It has various sealing functions, especially for special-shaped containers sealing.
3.3. Built in regulated power supply system, constant power output, not affected by power grid.
3.4. Inductor: Unique tunnel structure. The sensor is rotatable and interchangeable. It is suitable for sealing bottles with different sizes and diameters. One machine can be used for multiple purposes to save cost.
3.5. It has intelligent protection functions such as overvoltage, overcurrent and overheating.
3.6. Adjustable power supply, starting without preheating, simple operation.
3.7. Cooling system adopts silent design can effectively reduce the working noise.
3.8. The equipment of the same model can be interchanged: it can reduce the cost and facilitate the maintenance.
3.9. New Module Intelligent Box Technology: Anti-corrosion, moisture-proof, dust-proof, anti electromagnetic interference, long service life, convenient maintenance and greatly reduce the cost.
